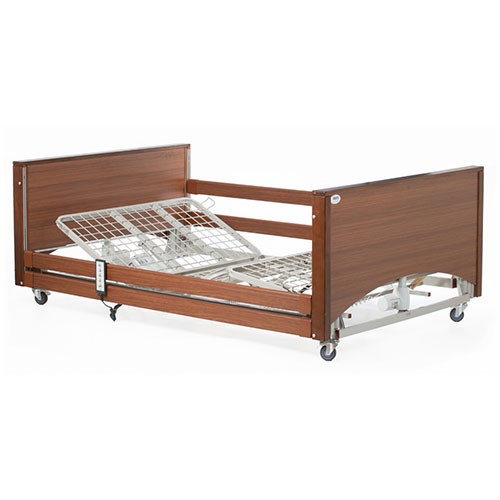

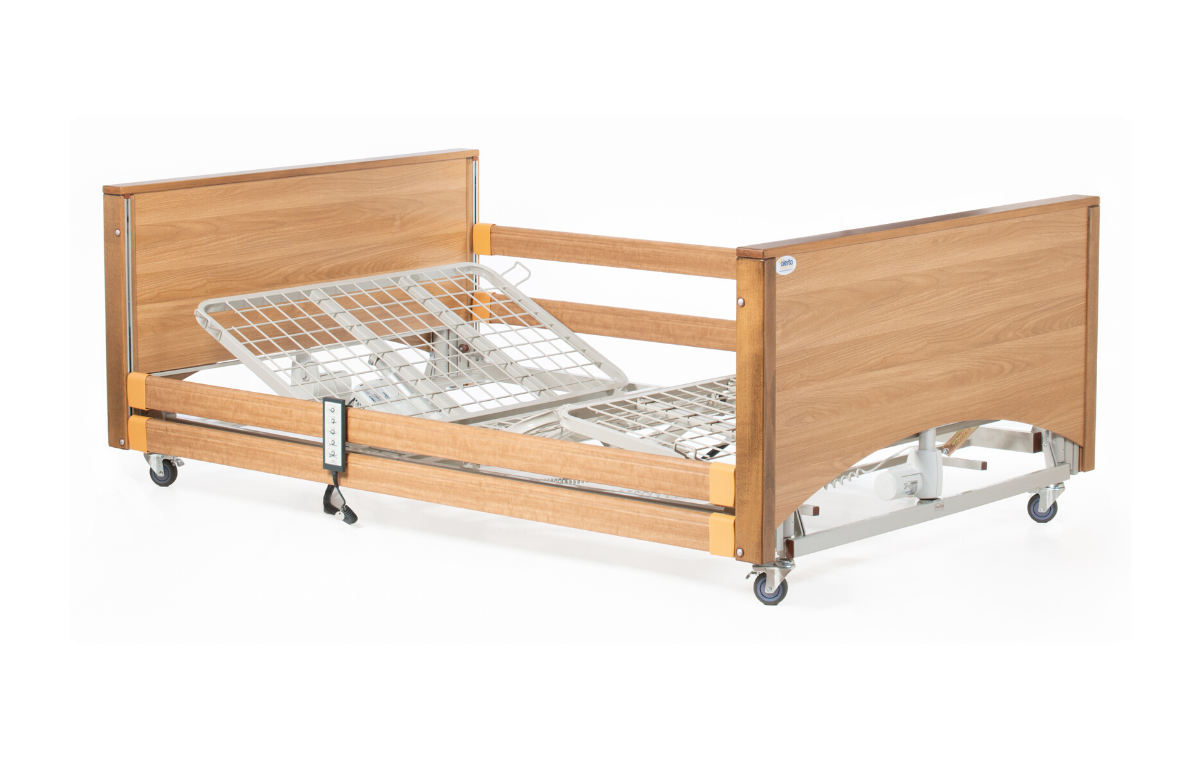

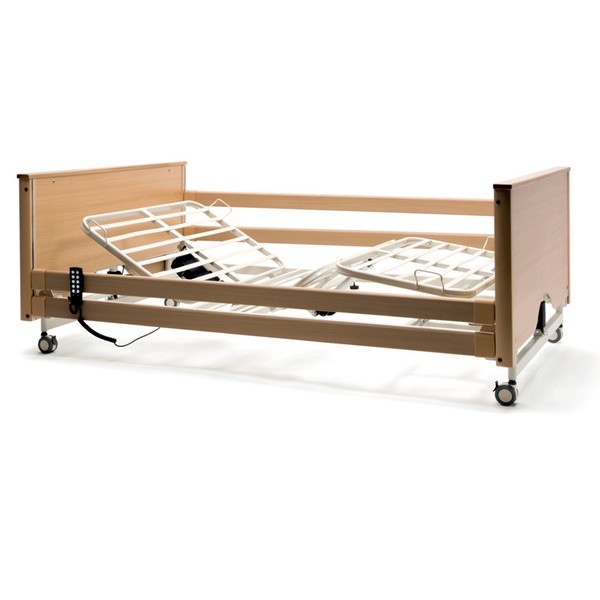

Bariatric bed

The 120cm wide profiling 4 section bed has trendelenburg function as standard,electrically operated backrest,height, tile and knee break,easy to clean and low maintenance.The height range from 20-80cm, it’s reduce the risk of injury and good for care taking.

Features&Benefits

√ Extra wide bed 120cm

√ Electric backrest, knee-rest, hi-low, trendelenburg and reverse-trendelenburg.

√ It’s simplistic design allows easy assemble and dismantling without tools, the process can be managed by one person.

√ Four brake castors(75mm).

√ Extra high side rails and 20cm extension kit available.

√ Transport bracket aids storage and transportation .

√ Conforms to the IEC60601-2-52, the new standard for the beds.

Technical Specifications

√ Maximum Safe Working Load      250KG

√ Outer Dimensions               2130x1320mm

√ Mattress support dimension       1900x1200mm

√ Height Adjustment               20-80cm

√ Adjustment Angle of Back Section    0°-70°

√ Adjustment Angle of Foot Section    0°-20°
